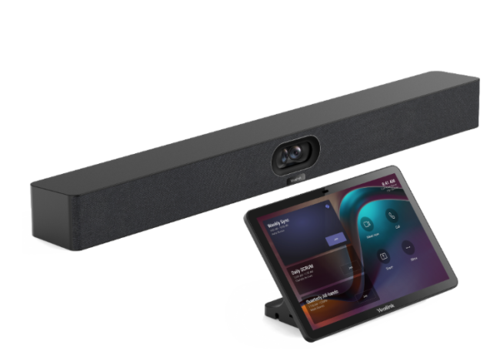

Yealink A40-031 All-in-one Collaboration bar, with touch console, TEAMS and BYOD

All-in-One Android Video Collaboration Bar for Small to Medium Rooms

Yealink MeetingBar A40, an all-in-one video collaboration bar for premium small-to-medium rooms. It will combine the images from two 48MP lenses, presents a higher pixel picture, and delivers clearer image quality. It also features built-in 2 stereo speakers, 8x MEMS microphone array, and supports 2 additional expansion microphones*.
The intelligent noise reduction technology provides a good audio experience. Yealink MeetingBar A40 allows for the upgrade to the latest Android operating system, Android 13, and will
continue to receive future upgrades. It can ensure that users can enjoy the latest features and improvements as they become available. In addition, it is compatible with Microsoft's MDEP, which enhances security and deployment experiences. This integration provides users with a more secure environment and streamlined deployment processes, contributing to a smoother and safer user experience.
Moreover, Yealink MeetingBar A40 features a direct connection to CTP25, enabling a simplified login process.This streamlined login experience saves time and improves convenience for users.
* Support 2x expansion microphones: Optional

• Ultra HD picture quality *
• High-quality audio pickup experience *
• Compatible with Microsoft's MDEP
• Multi-Platform Flexibility
• Simple deployment
• Remote device management
• Includes the Yealink Collaboration Touch Panel CTP25 (Teams Collaboration Touch Panel, Annotation on Shared Content, Conference Control, Flexible Deployment, 10-Inch Touch Screen)

Ultra HD picture quality
The dual lens fixed-focus stitching solution combines the images from two lenses to achieve a higher pixel density, resulting in clearer and sharper image quality. This is beneficial for detailed observation during meetings, document presentations, and the viewing experience of remote participants.
High-quality audio pickup experience
Yealink MeetingBar A40 has 6-meter voice pickup range and built-in stereo speakers, 3-meter full-duplex technology and 8x MEMS microphone array. The intelligent noise reduction technology provides a good audio experience. In addition, it can support 2 additional expansion microphones, then can cover a large conference room.
Compatible with Microsoft's MDEP
Yealink MeetingBar A40 compatible with Microsoft's MDEP, which enhances security and deployment experiences. This integration provides users with a more secure environment and streamlined deployment processes, contributing to a smoother and safer user experience.
Multi-Platform Flexibility
Yealink MeetingBar A40 support native Teams, Zoom, etc. In addition, it also supports wired General Mode. After entering BYOD mode, you can take MeetingBar A40 as the peripherals for meetings held by third-party apps.
Simple deployment
Yealink MeetingBar A40 features a direct connection to CTP25, enabling a simplified login process. Only need to log in once. This streamlined login experience saves time and improves convenience for users.
Remote Device Management
Yealink MeetingBar A40 is networked and reported to the device management platform, then can be remotely managed, configured, and upgraded.

Camera

• Maximum pixels: 2*48MP pixels
• Number of preset positions: 9
• Electronic gimbal
• 120° DFOV, 54° VFOV, 110° HFOV
• Depth of field: 1-5 meters
• 6x digital zoom
• Maximum resolution: 4K
• Maximum frame rate: 60FPS
• Video output resolution: 4K60fps, 1080P60fps
• Effective focal length: 4.2 mm
• Aperture: F/2.2-F/2.4
• Supports wide dynamic range
• High dynamic range imaging: 10-bit
• Supports auto exposure
• White balance: ATW/auto/manual
• Shutter speed: 10ms-33ms
• Minimum illumination: 0.5 lux (daytime), 0.1 lux (nighttime)
• Signal-to-noise ratio: >63 dB
• Privacy cover: Electric lens cap
• Lens calibration
• Intelligence Features
- IntelliFocus
- Auto Framing
- Speaker Tracking
People counting
- Picture in Picture
- Multi-focus Framing
- Smart Gallery (Zoom only)
• Number of cameras: 2

Speaker

• Built-in 2 x 10W speakers
• Frequency response: 80-18KHz
• Sensitivity: 102dBSPL 1W@0.1m
• Maximum sound pressure level: 112dBSPL 10W@0.1m
• Sampling rate: 48K 16bit
• Sound emission angle: Forward-facing

Microphone

• Built-in 8 MEMS microphone array
• 6-meter pickup distance, 4-meter high-quality pickup distance
• Signal-to-noise ratio: 72dB
• Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL
(individual microphone)
• Dynamic range: 28-100dBSPL
• Sensitivity: -38dBV/pa
• Frequency response: 100-20kHz
• Sampling rate: 48K32bit
• Bit depth: 32-bit

Resolution

• Portrait resolution: up to 4K30fps
• Bandwidth requirement: 10Mbps or more

Content sharing

• Up to 4K15 in General Mode
• Teams: 1080p in meeting, 4K local sharing
• Zoom: 1080p

Communication standard protocol

• SIP/H.323 in General Mode

Network Protocol

• Wi-Fi 6
- 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax
- 2x2 MIMO
• Bluetooth 5.0
• TCP/IP (IPv4/IPv6), DHCP/static IP
• HTTPS secure web access

Configuration Management

• Automatic configuration via web page/display/AutoP
• Firmware upgrade, factory reset
• Configuration import and export
• System log export

Device Management

• Yealink Https Web Portal
• Yealink Device Management Platform
• Yealink Management Cloud Service
• Microsoft Device Management Platform(Microsoft Teams Admin
Center/Intune)
• Zoom Device Management

Installation

• Wall mount
• Use TV-Clip Mount
• Place on the desktop

Ports

• 1x USB2.0 USB-A port
• 1x USB-C port
• 1x Ethernet port
• 1x Yealink VCH port (RJ-45)
• 1x 3.5mm Line-in & Line-out port
• 1x Power port
• 1x Security lock slot
• 1x Reset slot
• 2x HDMI-out

In the box

• MeetingBar A40
• HDMI cable x2
• Network cable x1
• TV-Clip Mount x1
• Wall Mount x1

This bundle includes the Yealink Collaboration Touch Panel CTP25

A collaborative meeting experience at your fingertips

Robust collaboration functionalities make the meetings simple and efficient

? Multiple participants can annotate at the same time with various kinds of markups. The real-time handwriting presentation, allows participants to see what is being written with no latency, making discussions much more effective.

? CTP20 features a built-in whiteboard. One Yealink video conferencing system can be connected with up to 4 CTP20 units. Users are enabled to write on the whiteboard synchronously, which helps participants to meet their discussion objectives more quickly.

Ultimate meeting control assists you to achieve more

? The touch control of the IPS screen outperforms traditional control modes magnificently. All meeting controls can be navigated on CTP20, including previewing and adjusting the camera, joining a meeting, inviting, recording, etc.

? When paired with the Yealink Wireless Presentation Pod WPP20, you can gain reverse control from meeting room touch screen CTP20 over your computer, resulting in multi-screen interaction which assists you to achieve more.

Natural writing free of distraction so you can focus on your ideas

The industry-leading 13.3-inch meeting room touch screen has been combined with a scalable canvas, such that every single idea can be recorded on the ample space provided by CTP20. In addition, the new active capacitive pen mimics a real writing experience, facilitating participants to focus on the topics of discussions instead of the technology.

PoE and Wi-Fi connection offer a clutter-free meeting space

CTP20 supports PoE where one cable carries both data and power for the device. Data transmission between CTP20 and the terminal is realized either by cable or Wi-Fi, which eliminates the tricky wiring connections between the screen area and the conference table, making clean and well-organized meeting spaces and easy meeting control a reality.
