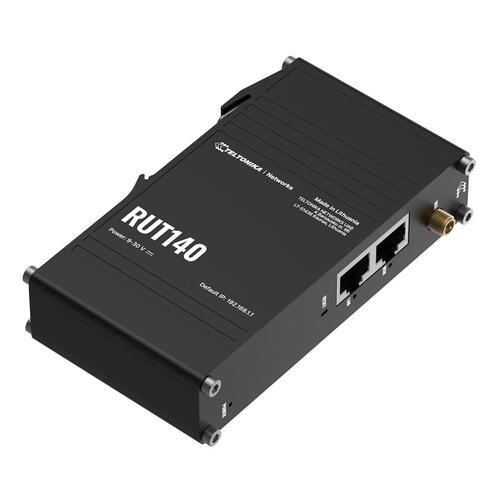

Teltonika RUT140 DIN Rail Mountable Industrial Ethernet Wi-Fi Router
The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
- RMS Remote management, access & VPN services
- Simple installation with an integrated DIN rail bracket
- 1 x 3-pin power connector tailored for industrial use
- Power Supply not included
|
Ethernet |
2 x RJ45 ports, 1 x WAN + 1 x LAN, 10/100 Mbps |
|
Wireless mode |
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
|
Wi-Fi security |
WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect |
|
SSID/ESSID |
ESSID stealth mode |
|
Wi-Fi users |
Up to 50 simultaneous connections |
|
Wireless Connectivity Features |
Wireless mesh (802.11s), fast roaming (802.11r), Relayed, BSS transition management (802.11v), radio resource measurement (802.11k) |
|
Power Connector |
3-pos pluggable terminal block |
|
Input voltage range |
9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max |
|
PoE (passive) |
Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
|
Power consumption |
Idle: < 1 W / Max: < 2 W |
|
Status LEDs |
1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
|
Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
|
Monitoring and Management |
WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
|
Power |
1 x 3-pin power connector |
|
Antennas |
1 x RP-SMA for Wi-Fi |
|
Reset Button |
Reboot/User default reset/Factory reset button |
|
Casing material |
Aluminium housing |
|
Dimensions (W x H x D) |
113.10 x 25 x 68.6 mm |
|
Weight |
142.3 g |
|
Mounting options |
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
|
Operating temperature |
-40 °C to 75 °C |
|
Operating humidity |
10% to 90% non-condensing |
|
Ingress Protection Rating |
IP30 |
|
Regulatory |
CE, UKCA, FCC, IC, CB, WEEE, RoHS, REACH |
|
Ethernet |
2 x RJ45 ports, 1 x WAN + 1 x LAN, 10/100 Mbps |
|
Wireless mode |
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
|
Wi-Fi security |
WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect |
|
SSID/ESSID |
ESSID stealth mode |
|
Wi-Fi users |
Up to 50 simultaneous connections |
|
Wireless Connectivity Features |
Wireless mesh (802.11s), fast roaming (802.11r), Relayed, BSS transition management (802.11v), radio resource measurement (802.11k) |
|
Power Connector |
3-pos pluggable terminal block |
|
Input voltage range |
9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max |
|
PoE (passive) |
Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
|
Power consumption |
Idle: < 1 W / Max: < 2 W |
|
Status LEDs |
1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
|
Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
|
Monitoring and Management |
WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
|
Power |
1 x 3-pin power connector |
|
Antennas |
1 x RP-SMA for Wi-Fi |
|
Reset Button |
Reboot/User default reset/Factory reset button |
|
Casing material |
Aluminium housing |
|
Dimensions (W x H x D) |
113.10 x 25 x 68.6 mm |
|
Weight |
142.3 g |
|
Mounting options |
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
|
Operating temperature |
-40 °C to 75 °C |
|
Operating humidity |
10% to 90% non-condensing |
|
Ingress Protection Rating |
IP30 |
|
Regulatory |
CE, UKCA, FCC, IC, CB, WEEE, RoHS, REACH |
