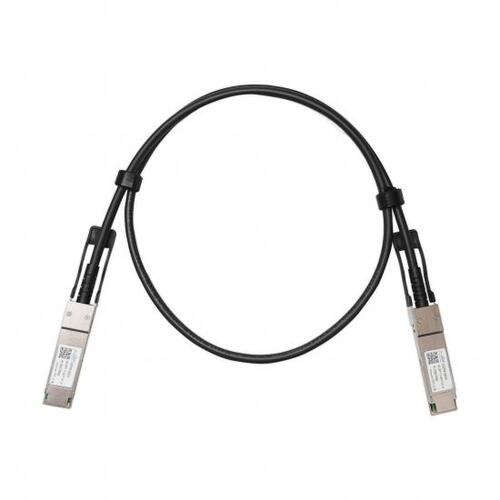

ETU-LINK EQDP4X-326CN5 40GbE QSFP to 40GbE QSFP DAC cable, 5m

40GbE QSFP to 40GbE QSFP DAC cable, 5m

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

40GbE QSFP to 40GbE QSFP DAC cable, 5m

Compliant QSFP MSA specifications
Fully compatible with IEEE802.3ba and Infiniband QDR specifications
40Gb/s total bandwidth
4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbps data rates
100 ohm differential impedance system
Single 3.3V power supply, low power consumption, <1.5W
Low Near-End Crosstalk(NEXT)
Operating case temperature: -40 to 85°C
All-metal housing for superior EMI performance
Precision process control for minimization of pair-to-pair skew
AC coupling of PECL signals
EEPROM for cable signature & system communications
30 AWG to 24 AWG cable sizes available
RoHS compliant
