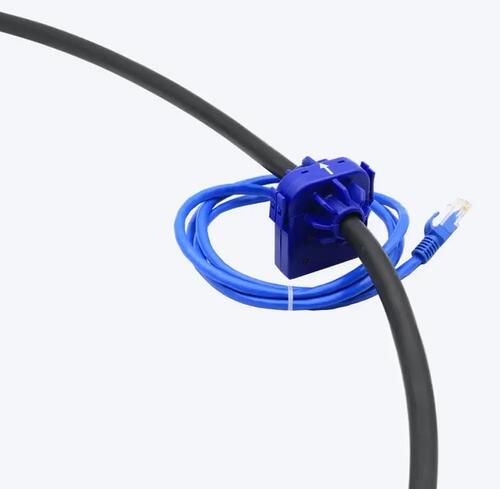

AKCP CCM Non-invasive current meter. Monitor current in multicore cables

Non-invasive current meter. Monitor current in multicore cables

Non-invasive monitoring of multi core power cables up to 32 Amps.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Contactless Current Meter

Typical current transformers require access to a single live wire. The Contactless Current Meter (CCM) does not need any splitting of cables, needs no electrician to install and is completely non invasive. With an accuracy of +/-5% (on factory calibrated cable) and +/- 10% on in field calibrated cables, the CCM gives sufficient accuracy to check for sufficient power overhead in your data center for capacity planning. It can also warn when approaching the tripping point of your breakers, and be utilized for PuE calculations.

Measuring Specifications



Status Indication

LED indication for power
LED array for calibration

Inputs

Magnetic field sensing of current in multicore cable

Accuracy

+/-5% when factory calibrated on cable of same type
+/-10% on non-factory calibrated cable

Components

Manufactured using highly integrated, low power surface mount technology to ensure long term reliability.

Operating Environment

Temperature: Min. -35°C Max. 80°C
Humidity: Min. 20% – Max. 80% (Non-condensing)

Interface



Communications Cable:

RJ-45 jack to sensor using UTP Cat 5e cable

Power Source

Powered by the controller unit. No additional power needed

Power Consumption:

Typical 7.25mWatt, 1.45mA

Maximum Cable Length:

50ft using standard CAT5/6 UTP cable

Dimensions:

49(W) x 45(H) x 51(D) mm

Mounting

Cable mounted

Sensor Count

1
