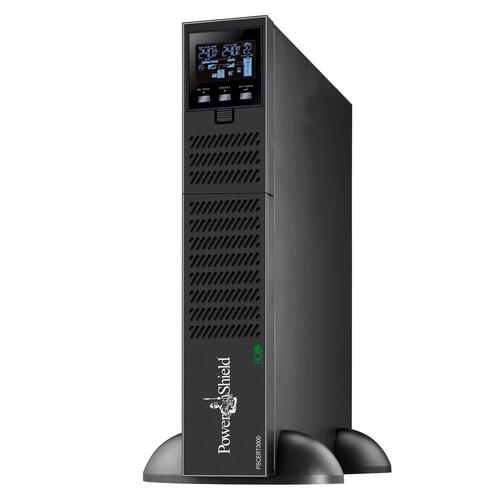

Powershield PSCERT3000 Centurion RT 3000VA Double Conversion True Online UPS, Rack/Tower
As a true online double conversion UPS the Centurion RT is our highest single phase power density UPS. Boasting an output power factor of 0.9, this will fully protect mission critical devices as it can support larger loads than UPS products of an equal VA rating.The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode
- True double-conversion
- Output power factor 0.9
- User-friendly and electronic easy-shift LCD display
- Rack or Tower design
- Advanced ECO mode for energy saving
- Generator compatible
- Programmable power management outlets
- Emergency Power Off function (EPO)
- Hot swappable battery design
- Available in 1000, 2000 and 3000 VA models
- Ideal for medium density power protection
- Extra large charger
- 2 Year Warranty
Battery 6 x 12V 9AH. Requires 15 amp wall plug.
|
INPUT |
||
|
Voltage Range |
Low Line Transfer |
160Vac / 140Vac / 120Vac / 110Vac ± 5% (based on load percentage 100% - 80% / 80% - 70% / 70% - 60% / 60% - 0) |
|
Low Line Comeback |
170Vac / 150Vac / 130Vac / 120Vac ± 5% |
|
|
High Line Transfer |
300Vac ± 5% |
|
|
High Line Comeback |
290Vac ± 5% |
|
|
Frequency Range |
40Hz - 70Hz |
|
|
Phase |
Single phase with ground |
|
|
Power Factor Correction |
>0.99 @ nominal voltage (100% load) |
|
|
OUTPUT |
Output Power Factor: 0.9 |
|
|
Output Voltage (AC Mode) |
240Vac (Selectable 208/220/230/240Vac) |
|
|
Voltage Regulation (Batt. Mode) |
±1% |
|
|
Frequency Range (Batt. Mode) |
50Hz or 60Hz ±1Hz |
|
|
Current Crest Ratio |
5:1 (max.) |
|
|
Transfer Time |
4ms (Typical) |
|
|
EFFICIENCY |
||
|
ECO Mode (Advanced) |
98% |
|
|
Battery Mode |
87% |
|
|
BATTERY |
||
|
Battery Type & Number |
12 V*9AH (x6) |
|
|
Typical Recharge Time |
4 hours recover to 90% capacity. |
|
|
Charging Current (max.) |
Standard Model -1.5Amp, Long Run Model - 1Amp/2Amp /4Amp/6Amp (factory default is 6Amp) |
|
|
PROTECTION |
||
|
Full Protection |
Overload, discharge, thermal, short circuit and overcharge protection |
|
|
Surge Protection |
984 Joules / 22000 Amps |
|
|
COMMUNICATIONS & MANAGEMENT |
||
|
Interface |
USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
|
|
Software |
PowerShield NetGuard® software - supports Windows-based operating systems, Linux, Unix and Mac |
|
|
LCD Display / Alarm |
UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators |
|
|
Audible Alarm |
Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload |
|
|
PHYSICAL |
||
|
Dimension (D x W x H) |
600 x 438 x 88 mm |
|
|
Weight |
29.6kg |
|
|
OPERATING ENVIRONMENT |
||
|
Tempertature |
0 - 40°C |
|
|
Humidity |
20 - 90% (RH Non-Condensing) |
|
|
Noise Level |
< 50dBA @ 1 Meter |
|
|
COMPLIANCE |
||
|
Safety |
EN62040-1-1 2003, IEC60950-1-1 |
|
|
EMC |
EN62040-2 2006 |
|
|
RoHS |
Directive 2011/65/EU |
|
|
