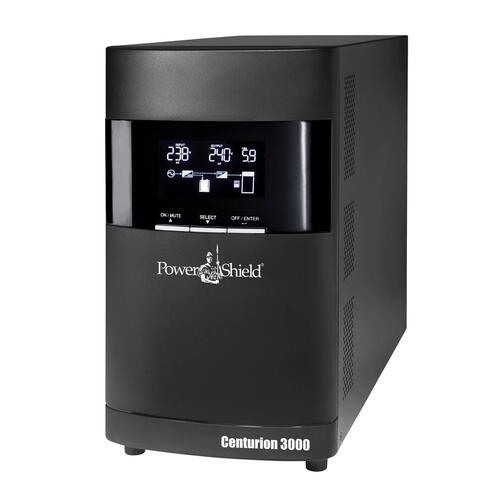

Powershield PSCE3000 Centurion Tower 3000VA / 2700W Double Conversion True Online UPS
The PowerShield Centurion UPS provides a permanent backup power solution for sensitive devices such as medical equipment and internet routers.
Use Power Shield Centurion to protect:
Servers
Critical power applications
Items in remote areas (over 30 kms outside of city grid)
Where light to heavy industrial equipment is utilised
Where generators are present
Applications that require remote connectivity
Key Features
- True Online Double Conversion
- Wide input voltage range
- Input power factor correction 0.98
- 50Hz/60Hz frequency converter mode
- Programmable power outlets
- Emergency power off function (EPO)
- Optional Eco-mode operation for energy saving
- Generator compatible
- Backup time for all models is easily extended by simply plugging additional battery banks
- Battery banks are available with internal charger to enable fast recharge even with large battery banks
- USB, RS232, SNMP and AS400 multiple communications available
- Extendable maintenance bypass available for all models
- N+X parallel redundancy available for 6K/10K model
- 2 Year Warranty
|
INPUT |
||
|
Voltage Range |
Low Line Transfer |
160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5% |
|
Low Line Comeback |
175 VAC ± 5% |
|
|
High Line Transfer |
300 VAC ± 5% |
|
|
High Line Comeback |
47.5Hz ~ 52.5 Hz or 57Hz ~ 63Hz |
|
|
Frequency Range |
47.5Hz ~ 52.5 Hz or 57Hz ~ 63Hz |
|
|
Phase |
Single phase with ground |
|
|
Power Factor |
0.98 |
|
|
OUTPUT |
||
|
AC Voltage Regulation (Batt. Mode) |
± 3% |
|
|
Frequency Range (Synchronized Range |
48Hz ~ 52Hz or 57Hz ~ 63Hz |
|
|
Frequency Range (Batt. Mode) |
50Hz ± 0.25Hz or 60Hz ± 0.3Hz |
|
|
Load Crest Factor |
3:1 |
|
|
Harmonic Distortion |
4% THD (Linear Load) 7% THD (Non-linear Load) |
|
|
Transfer |
AC Mode to Batt. Mode |
Zero |
|
Inverter to Bypass |
4ms (Typical) |
|
|
Waveform (Batt. Mode) |
Pure Sinewave |
|
|
EFFICIENCY |
||
|
ECO Mode |
88% |
|
|
Battery Mode |
83% |
|
|
BATTERY |
||
|
Battery Type |
12Vx9AH (x6) |
|
|
Typical Recharge Time |
4 Hours to Recover to 90% Capacity |
|
|
Charging Time (Max.) |
1.0A |
|
|
Charging Voltage |
82.1 VDC ± 1% |
|
|
PROTECTION |
||
|
Full Protection |
Overload, discharge, thermal, short circuit |
|
|
COMMUNICATIONS & MANAGEMENT |
||
|
Interface |
USB or RS232 as standard, Intelligent slot for PSSNMP |
|
|
Software |
Power Shield NetGuard Software - supports |
|
|
LCD Display / Alarm |
UPS Status, Load Level, Battery Level, Input/Output Voltage, |
|
|
Audible Alarm |
Battery Mode, Low Battery, Overload, Fault |
|
|
PHYSICAL |
||
|
Dimension (D x W x H) |
425 x 190 x 335mm |
|
|
Weight |
28kg |
|
|
OPERATING ENVIRONMENT |
||
|
Temperature |
0°C - 40°C |
|
|
Humidity |
20-90% (RH Non-condensing) |
|
|
Noise Level |
Less than 45dBA @ 1 Meter |
|
|
COMPLIANCE |
||
|
Safety |
EN62040-1-1 2003, IEC60950-1-1 |
|
|
EMS |
EN62040-2 2006 |
|
|
RoHS |
Directive 2001 / 65 / EU |
|
|
