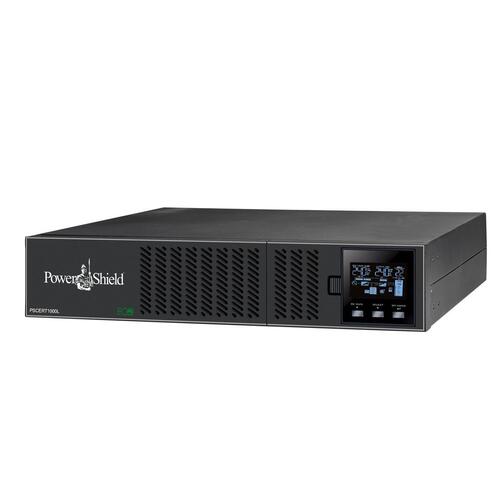

Powershield PSCERT1000L Centurion RT 1000VA Long Run Online UPS. No Internal Batteries
Centurion RT 1000VA Long Run Online UPS. No Internal Batteries, PSRTBB6 or External battery bank must be used. 8A Internal Charger.
As a true online double conversion UPS the Centurion RT is our highest single phase power density UPS. Boasting an output power factor of 0.9, this will fully protect mission-critical devices as it can support larger loads than UPS products of an equal VA rating.
The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode.
- True double-conversion
- Output power factor 0.9
- User-friendly and electronic easy-shift LCD display

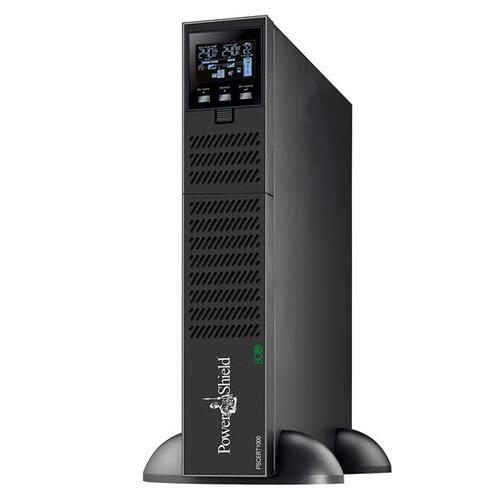

- Rack or Tower design
- Advanced ECO mode for energy saving
- Generator compatible
- Programmable power management outlets
- Emergency Power Off function (EPO)
- Hot-swappable battery design
- Ideal for medium density power protection
- Extra large charger
|
PSCERT1000L |
RT BATTERY BANKS: PSRTBB12 |
||
|
Capacity |
1000VA/900W |
|
|
|
Topology |
True online double- conversion, Pure Sine Wave |
|
|
|
INPUT |
|||
|
Voltage Range |
Low Line Transfer |
160V/140V/120V/110V AC ±5% (based on load percentage 100%-80%/80%-70%/70%-60%/60%-0) |
|
|
Low Line Comeback |
175V/155V/135V/25V AC ±5% |
|
|
|
High Line Transfer |
300V AC ±5% |
|
|
|
High Line Comeback |
290V AC ±5% |
|
|
|
Frequency Range |
40Hz ~ 70Hz |
|
|
|
Phase |
Single phase with ground |
|
|
|
Power Factor Correction |
≥0.99 @ nominal voltage (100% load) |
|
|
|
OUTPUT |
|||
|
Output Power Factor |
0.9 |
|
|
|
Output Voltage (AC Mode) |
240V AC (Selectable 200/208/220/230/240V AC) |
|
|
|
Voltage Regulation (Batt. Mode) |
± 1% |
|
|
|
Frequency Range (Batt. Mode) |
50Hz or 60Hz ±1Hz |
|
|
|
Current Crest Ratio |
3:1 (max.) |
|
|
|
Transfer |
AC Mode to Batt. Mode |
4ms (Typical) |
|
|
Inverter to Bypass |
Pure Sine Wave |
|
|
|
EFFICIENCY |
|||
|
ECO Mode (Advanced) |
96% |
|
|
|
Battery Mode |
86% |
|
|
|
BATTERY |
|||
|
Battery Number (12Vx9AH) |
x 3 |
|
|
|
Typical Recharge Time |
4 hours recover to 90% capacity (for the standard model only) |
|
|
|
Charging Current (max.) |
Standard Models - 1.5Amp. Long Run Models - 1Amp/2Amp/4Amp/6Amp selectable (factory default is 6Amp) |
|
|
|
PROTECTION |
|||
|
Full Protection |
Overload, discharge, thermal, short circuit and overcharge protection |
|
|
|
Surge Protection |
984 Joules/22000A |
|
|
|
COMMUNICATIONS AND MANAGEMENT |
|||
|
Interface |
USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
|
|
|
Software |
PowerShield® NetGuard® software - supports Windows-based operating systems, Linux, Unix and Mac |
|
|
|
LCD Display/Alarm |
UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators |
|
|
|
Audible Alarm |
Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload |
|
|
|
PHYSICAL |
|||
|
Dimension, (D x W x H) |
380 x 438 x 88mm |
480 x 438 x 88mm |
|
|
Weight |
8.4kg |
22kg |
|
|
OPERATING ENVIRONMENT |
|||
|
Temperature |
0°C ~ 40°C |
|
|
|
Humidity |
20% ~ 90% (RH Non-condensing) |
|
|
|
COMPLIANCE |
|||
|
Safety/EMC/RoHS |
EN62040-1-1 2003, IEC60950-1-1/EN62040-2 2006/Directive 2011/65/EU |
|
|
|
