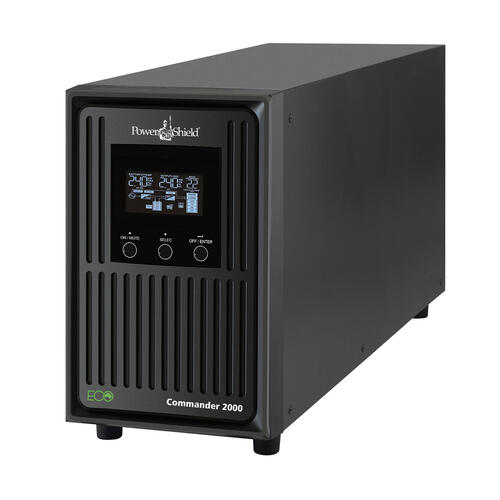

Powershield PSCM2000 Commander 2000VA Line Interactive Tower UPS
POWERSHIELD Commander 2000VA Line Interactive Tower UPS. Delivers Automatic Emergency AC Power Generated from Internal DC Batteries. Tower case UPS with Backlit LCD. Pure Sine Wave Output.
The PowerShield Commander is a sophisticated pure sine wave, line interactive UPS. On top of featuring Automatic Voltage Regulation (AVR), it provides a Pure Sine Wave output while in backup mode. This UPS is a cost-effective solution for protecting applications such as networking, telecom, security and motors.
- Pure Sine Wave Output
- Output Power Factor 0.9
- Free Programmable Power Management
- Ultra Modern, Informative LCD – Shows Battery Time Remaining
- ECO Mode
- Smart AVR
- Emergency Power Off Function
- Multiple Communication Available with Faster SNMP Card
|
Capacity |
2000VA/1800W |
|
Topology |
Line Interactive, Pure Sine Wave |
|
INPUT |
|
|
Nominal Voltage |
240V AC |
|
Acceptable Voltage Range |
162-290V AC |
|
Frequency |
50/60Hz ±5Hz (auto sensing) |
|
OUTPUT |
|
|
Voltage Regulation (AC Mode) |
240V AC (Selectable 208/220/230V AC) ±10% AVR |
|
Voltage Regulation (Batt. Mode) |
± 1.5% (before battery alarm) |
|
Frequency Range (Batt. Mode) |
50Hz or 60Hz ±1Hz |
|
Current Crest Ratio |
3.1 |
|
Total Harmonic Distortion |
2% max @ 100% linear load, 5% max @ 100% non-linear load (before low battery alarm) |
|
Transfer Time |
6ms (Typical), 10ms max. |
|
Waveform (Batt. Mode) |
Pure Sine Wave |
|
EFFICIENCY |
|
|
AC Mode |
98% (Advanced ECO design) |
|
Battery Mode |
91% |
|
BATTERY |
|
|
Standard Model |
Battery Type & Number: 12V/9AH (x4) |
|
PROTECTION |
|
|
Full Protection |
Overload, thermal, short circuit, discharge and overcharge protection |
|
Surge Protection |
1968J/39000A |
|
ENVIRONMENT |
|
|
Operation Temperature |
0°C~40°C |
|
Relative Humidity |
0%~90% (RH non-condensing) |
|
Noise Level |
<45dB |
|
COMMUNICATIONS & MANAGEMENT |
|
|
Interface |
USB and RS-232 as standard, an Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
|
Software |
PowerShield NetGuard® software - supports Windows-based operating system, Linux, Unix and Mac |
|
LCD display |
AC mode, Batt. Mode, Load Level, Input Voltage, Output Voltage, Overload, Fault, Battery Replacement, Low Batt., Batt. Time Remaining |
|
Audible alarm |
Battery Mode, Low Battery (Batt. Mode), Battery Replacement, Fault, Overload |
|
PHYSICAL |
|
|
Dimensions (D x W x H) |
455 x 145 x 220mm |
|
Weight |
20.5/22.5kg |
|
COMPLIANCE |
|
|
Safety |
EN62040-1 -1 2003, IEC 60950-1 -1 |
|
EMC |
EN62040-2 2006 |
|
RoHS |
Directive 2011/65/EU |
|
