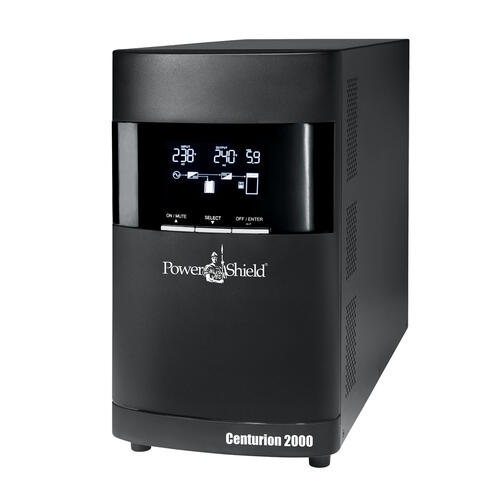

Powershield PSCE2000 Centurion Tower 2000VA/ 1800W Double Conversion True Online UPS
The PowerShield Centurion UPS provides a permanent backup power solution for sensitive devices such as medical equipment and internet routers.
Use Power Shield Centurion to protect:
+Servers
+Critical power applications
+Items in remote areas (over 30 kms outside of city grid)
+Where light to heavy industrial equipment is utilised
+Where generators are present
+Applications that require remote connectivity
- True Online Double Conversion
- Wide input voltage range
- Input power factor correction 0.98
- 50Hz/60Hz frequency converter mode
- Programmable power outlets
- Emergency power off function (EPO)
- Optional Eco-mode operation for energy saving
- Generator compatible
- Backup time for all models is easily extended by simply plugging additional battery banks
- Battery banks are available with internal charger to enable fast recharge even with large battery banks
- USB, RS232, SNMP and AS400 multiple communications available
- Extendable maintenance bypass available for all models
- N+X parallel redundancy available for 6K/10K model
|
INPUT |
||
|
Voltage Range |
Low Line Transfer |
160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % |
|
Low Line Comeback |
175 VAC ± 5% |
|
|
High Line Transfer |
300 VAC ± 5% |
|
|
High Line Comeback |
47.5Hz ~ 52.5 Hz or 57Hz ~ 63Hz |
|
|
Frequency Range |
47.5Hz ~ 52.5 Hz or 57Hz ~ 63Hz |
|
|
Phase |
Single Phase with Ground |
|
|
Power Factor |
0.98 |
|
|
OUTPUT |
||
|
AC Voltage Regulation |
± 3% |
|
|
Frequency Range |
48Hz ~ 52Hz or 57Hz ~ 63Hz |
|
|
Frequency Range |
50Hz ± 0.25Hz or 60Hz ± 0.3Hz |
|
|
Load Crest Factor |
3:1 |
|
|
Harmonic Distorion |
4% THD (Linear Load) |
|
|
Transfer |
AC Mode to Batt. Mode |
Zero |
|
Inverter to Bypass |
4ms (Typical) |
|
|
Waveform (Batt. Mode) |
Pure Sinewave |
|
|
EFFICIENCY |
||
|
ECO Mode |
88% |
|
|
Battery Mode |
83% |
|
|
BATTERY |
||
|
Battery Type |
12Vx9AH(x6) |
|
|
Typical Recharge Time |
4 hours recover to 90% capacity |
|
|
Charging Current (max.) |
1.0A |
|
|
Charging Voltage |
82.1 VDC ±1% |
|
|
PROTECTION |
||
|
Full Protection |
Overload, discharge, thermal, |
|
|
COMMUNICATIONS & MANAGEMENT |
||
|
Interface |
USB or RS232 as standard, |
|
|
Software |
Power Shield NetGuard Software - |
|
|
LCD Display / Alarm |
UPS Status, Load Level, Battery Level, |
|
|
Audible Alarm |
Battery Mode, Low Battery, Overload, Fault |
|
|
PHYSICAL |
||
|
Dimension (D x W x H) |
425 x 190 x 335mm |
|
|
Weight |
26kg |
|
|
OPERATING ENVIRONMENT |
||
|
Temperature |
0°C - 40°C |
|
|
Humidity |
20% - 90% (RH Non-Condensing) |
|
|
Noise Level |
Less than 45dBA @ 1 Meter |
|
|
COMPLIANCE |
||
|
Safety |
EN62040-1-1 2003, IEC60950-1-1 |
|
|
EMS |
EN62040-2 2006 |
|
|
RoHS |
Directive 2001 / 65 / EU |
|
|
