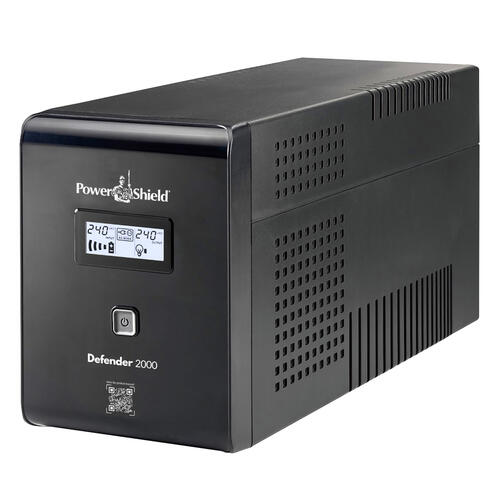

Powershield PSD2000 Defender 2000VA UPS, 6x 3-Pin Outlet Plugs
- 3x 3-Pin UPS Outlets with Surge Protection
- 3x 3-Pin Surge Protection Outlets
The most powerful UPS in the Defender Range, the Defender 2000 uses Automatic Voltage Regulation (AVR) to minimise the effects of ?uctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user replaceable batteries and 3-Pin Australian/New Zealand sockets makes the Defender the complete package at this level and is ideal for Workstations and Gaming.
- Stylish and informative LCD display
- Surge Protection, Best in its Class
- Excellent microprocessor control guarantees high reliability
- Australian outlets for UPS and Surge Protection
- Boost and buck AVR for voltage stabilization
- User replaceable batteries
- Silent Operation (No fans included)
- Auto restart while AC is recovering
- Off-mode charging
- Cold start function
- USB communication with sophisticated NetGuard software
- FREE download software
- The Defender USB communication port is compatible with Synology and QNAP NAS products.
- 2 Year Warranty
|
SPECIFICATION |
|
|
Capacity |
2000VA / 1200W |
|
Topology |
Line Interactive |
|
INPUT |
|
|
Voltage |
240VAC (Nominal) |
|
Voltage Range |
177~290VAC |
|
Frequency Range |
50/60Hz±5Hz (Auto-sensing) |
|
OUTPUT |
|
|
Output Voltage |
240VAC±10% |
|
Frequency |
AC mode tracks utility. |
|
Frequency Range |
50Hz or 60Hz±1Hz |
|
Transfer Time |
6ms (Typical) |
|
Waveform (Battery Mode) |
Simulated Sine Wave |
|
Outlets |
3x Surge Protection and 3x Surge Protection + UPS |
|
BATTERY |
|
|
Battery Type & Number |
12Vx9AH (x2) |
|
Typical Recharge Time |
6 hours recovery to 90% capacity |
|
Backup Time (50% Load) |
5.5mins |
|
PROTECTION |
|
|
Full Protection |
Overload, discharge, thermal, short circuit and overcharge protection |
|
Surge Protection |
936Joules / 19500Amps |
|
COMMUNICATIONS & MANAGEMENT |
|
|
Interface |
USB Interface |
|
Software |
NetGuard® supports Windows®, Linux, Unix & MAC |
|
LCD Alarm |
AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
|
Audible Alarm |
Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
|
PHYSICAL |
|
|
Dimensions (D x W x H) |
397 x 146 x 205mm |
|
Net Weight |
11.5kg |
|
OPERATING ENVIRONMENT |
|
|
Temperature |
0°C ~ 40°C |
|
Humidity |
0% ~ 90% (RH Non-condensing) |
|
Noise Level |
<5dB (no Fan) |
|
COMPLIANCE |
|
|
Safety |
EN62040-1-1 2003. IEC60950-1 : 2001 |
|
EMC |
EN62040-2 2006 |
|
RoHS |
Directive 2011 / 65 / EU |
|
