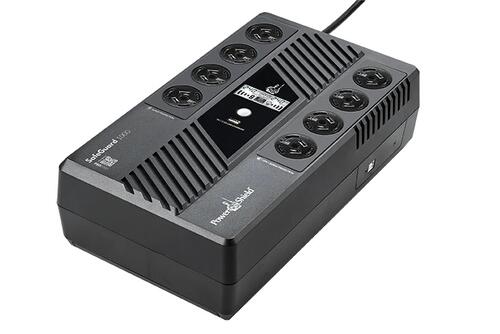

Powershield PSG1000 SafeGuard 1000VA UPS, 8x 3-Pin Outlet Plugs

  • 4x 3-Pin UPS Outlets with Surge Protection
  • 4x 3-Pin Surge Protection Outlets

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The SafeGuard UPS 1000 provides a buffer between your equipment and inconsistent mains power supply. This cost effective, compact device constantly stands guard beside your sensitive equipment. The informative display and USB charging port are unique to this model and offer a complete solution for protecting valuable equipment.

  • Automatic Voltage Regulation (Buck and Boost)
  • Informative Screen Display
  • USB Charging Port
  • Light-weight compact and elegantly designed
  • Intelligent microprocessor control
  • Monitoring and shutdown software included
  • Overload protection and alarm
  • Output short circuit protection
  • Start on battery function (cold start)
  • USB communication
  • Easy user-replaceable battery
  • Australian/New Zealand approved sockets
  • Wall mountable
  • 2 Year Warranty

Capacity

1000VA / 600W Line interactive

INPUT



Voltage

240Vac (Nominal)

Voltage range

177~290Vac

Frequency

50Hz or 60Hz (Auto-sensing)

OUTPUT



Output Voltage

240Vac ±10%

Frequency range (Batt. Mode)

50Hz or 60Hz ±-1Hz

Transfer time

6 msec (Typical)

Wave Form (Batt. Mode)

Simulated Sine Wave

NZ Outlets

4 (UPS and Surge Protection)

NZ Outlets

4 (Full Time Surge Protection)

BATTERY



Capacity

12Vx9AH

Backup Time

25min (1 PC load at 100W)

Typical Recharge Time

6~8 hours recover to 90% capacity

PROTECTION



Full protection

Overcharge, discharge, short circuit and thermal protection

Surge protection

475Joules /13000Amps - Best in its class



COMMUNICATIONS & MANAGEMENT



Interface

USB interface

Software

PowerShield® NetGuard® supports Windows, Linux, Unix & Mac

LED Alarm

AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault

Audible Alarm

Battery Mode, Low Battery (Batt. Mode), Fault

PHYSICAL



Dimensions L x W x H

345 x 200 x 100mm

Weight

6.1kg

OPERATING ENVIRONMENTS



Temperature

0°C~40°C

Humidity

0%-90% (RH Non-condensing)

Noise level

<5dB (No Fan)

COMPLIANCE



Safety

Safety EN62040 - 1 - 1 2003, IEC60950 - 1: 2001

EMC

EN62040 - 2 2006

RoHS

Directive 2011/65/EU
