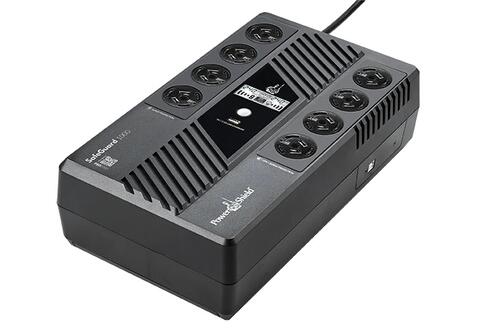

Powershield PSG1000 SafeGuard 1000VA UPS, 8x 3-Pin Outlet Plugs
- 4x 3-Pin UPS Outlets with Surge Protection
- 4x 3-Pin Surge Protection Outlets
The SafeGuard UPS 1000 provides a buffer between your equipment and inconsistent mains power supply. This cost effective, compact device constantly stands guard beside your sensitive equipment. The informative display and USB charging port are unique to this model and offer a complete solution for protecting valuable equipment.
- Automatic Voltage Regulation (Buck and Boost)
- Informative Screen Display
- USB Charging Port
- Light-weight compact and elegantly designed
- Intelligent microprocessor control
- Monitoring and shutdown software included
- Overload protection and alarm
- Output short circuit protection
- Start on battery function (cold start)
- USB communication
- Easy user-replaceable battery
- Australian/New Zealand approved sockets
- Wall mountable
- 2 Year Warranty
|
Capacity |
1000VA / 600W Line interactive |
|
INPUT |
|
|
Voltage |
240Vac (Nominal) |
|
Voltage range |
177~290Vac |
|
Frequency |
50Hz or 60Hz (Auto-sensing) |
|
OUTPUT |
|
|
Output Voltage |
240Vac ±10% |
|
Frequency range (Batt. Mode) |
50Hz or 60Hz ±-1Hz |
|
Transfer time |
6 msec (Typical) |
|
Wave Form (Batt. Mode) |
Simulated Sine Wave |
|
NZ Outlets |
4 (UPS and Surge Protection) |
|
NZ Outlets |
4 (Full Time Surge Protection) |
|
BATTERY |
|
|
Capacity |
12Vx9AH |
|
Backup Time |
25min (1 PC load at 100W) |
|
Typical Recharge Time |
6~8 hours recover to 90% capacity |
|
PROTECTION |
|
|
Full protection |
Overcharge, discharge, short circuit and thermal protection |
|
Surge protection |
475Joules /13000Amps - Best in its class |
|
COMMUNICATIONS & MANAGEMENT |
|
|
Interface |
USB interface |
|
Software |
PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
|
LED Alarm |
AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault |
|
Audible Alarm |
Battery Mode, Low Battery (Batt. Mode), Fault |
|
PHYSICAL |
|
|
Dimensions L x W x H |
345 x 200 x 100mm |
|
Weight |
6.1kg |
|
OPERATING ENVIRONMENTS |
|
|
Temperature |
0°C~40°C |
|
Humidity |
0%-90% (RH Non-condensing) |
|
Noise level |
<5dB (No Fan) |
|
COMPLIANCE |
|
|
Safety |
Safety EN62040 - 1 - 1 2003, IEC60950 - 1: 2001 |
|
EMC |
EN62040 - 2 2006 |
|
RoHS |
Directive 2011/65/EU |
|
