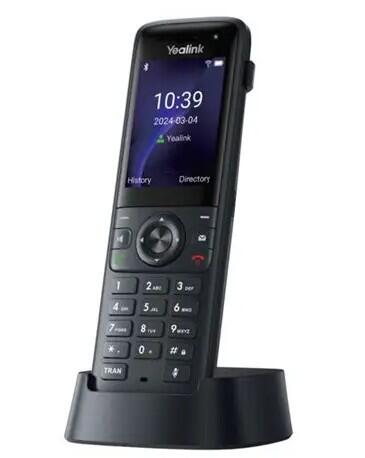

Yealink AX83H Enterprise portable Wi-Fi IP phone with colour screen
• 2.4" 240x320 TFT colour screen
• Up to 9-hour talk time (in ideal conditions)
• Up t0 200-hour standby time (in ideal conditions)
• Dual Band 2.4G/5G Wi-Fi 802.11 a/b/g/n/ ac/ax
• Support IEEE802.11k/v/r roaming
• Bluetooth 5.0 for headset
• HD audio and noise cancellation
• TRANS and Mute keys, 9 configurable keys
• Up t0 4 SIP accounts
• Local 5-way conferencing
• N Perception Upgrade
• Type-C charging
• Wall mountable and stand mountable
• Support YDMP/YMCS
Seamless Roaming Technology, Move Freely
Wi-Fi provides mobility and flexibility in any location with the necessary infrastructure. Dual-band Wi-Fi6 has better anti-interference and faster speed, allowing you to stay ahead in a busy data environment.
This phone supports IEEE802.11 k/v/r fast roaming protocol to achieve automatic network switching in milliseconds. Good coverage range and fast roaming enable seamless AP (Access Point) switching without experiencing disconnections.
It also has built-in Bluetooth 5.0 for Bluetooth headsets, freeing your hands and enabling a freer and more creative way of mobile offi ce collaboration.
• Audio Features:
Optimal HD audio:
• HD handset
• HD speaker
Hearing aid compatible (HAC) compliant
Audi codec:
• G.722, PCMU (G.711μ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
Smart Noise Cancellation Technology
VAD, CNG, AEC, PLC, AJB, AGC
• Display and Indicator:
2.4″ 240×320 TFT colour screen
Keypad backlight
Vibration
Wallpaper and screensaver
LED for call and message waiting indication
Multilingual user interface
Caller ID with name, number, and avatar
• Phone Features:
4 VoIP accounts
Speed dial, redial
Call hold/call transfer/call waiting/call forward
Emergency call
Mute, DND
Auto answer
Hotline
Recall
Local 5-way conferencing
Direct IP call without SIP proxy
Ring tone selection/import/delete
Set date time manually or automatically
Dial Plan, XML Browser, Action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Customizable softkey
• Peripherals:
Supports Bluetooth headset
• Basic functions: answer/end/mute call
• Enhanced functions: redial/call hold/volume adjustment two-way synchronization
• IP-PBX Features:
Anonymous call, anonymous call rejection
Intercom
Multicast paging
Call completion
Message Waiting Indicator (MWI)
Call Park, call pickup
Call recording
Voice mail
• Feature Keys:
2 soft keys
7 function keys: dial, hang up, handsfree, voice message, mute, call transfer
Navigation key and OK key
• Interface
1 x 3.5 mm headset jack
1 x Type-C port
• Network:
Built-in dual-band Wi-Fi:
• Network standard: 2.4G&5G
IEEE802.11a/b/g/n/ac/ax
• Frequency range: 2.4 GHz/ 5.0 GHz
• Roaming: IEEE802.11 k/r/v
Built-in Bluetooth 5.0:
• Connecting to Bluetooth Headset
IPv4/IPv6
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal:
• STUN mode
SIP link mode:
• Proxy mode and peer-to-peer
IP Assignment:
• static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV (RFC 3263)
QoS:
• Layer 3 ToS DSCP, 802.11e/WMM
• Power:
Power adapter:
• AC 100~240V input and DC 5V/1.2A output
• Package Contents:
Yealink AX83H Phone
Charger Cradle
Rechargeable Battery
Belt Clip
Quick Start Guide
Power Adapter
