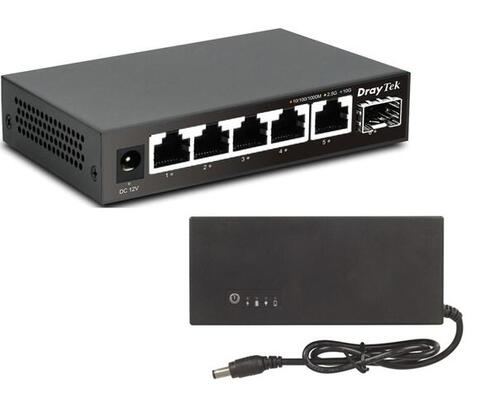

DrayTek DSQ60X-MP5240 Free UPS with Ethernet Switch, 1 x 10GbE SFP+, 5 x 1GbE/2.5GbE RJ45

Free UPS with Ethernet Switch, 1 x 10GbE SFP+, 5 x 1GbE/2.5GbE RJ45

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The UPS

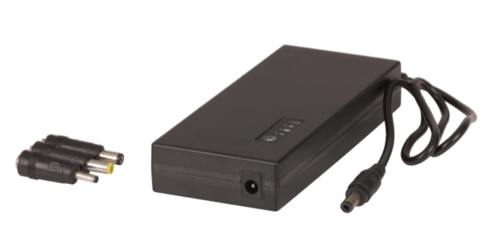

This is a compact DC UPS designed to connect inline with your ordinary 12VDC mains power adaptor. In the event of a power outage, the internal battery will keep your equipment operating.

Three interchangeable DC connectors are supplied to suit a range of devices such as modems, network switches, routers, video devices, surveillance systems or lights.

An integrated smart charger ensures the internal 18650 Li-ion batteries are charged, and adjusts the charge current based on the current draw to the device you are powering.

The rated output is 2.5A at 12V but 3A can be provided for a short time. Four status LEDs indicate the UPS charge status, and safety features include over-charge, over-discharge, over-current, and short-circuit.

Features:

- 2.5A Output
- DC Power
- Built-in rechargeable Li-ion battery
- Integrated smart charger
- LED status indicators


DC Connectors (mm):
Input: 5.5OD x 2.1ID - Center Tip Positive
Output: 5.5OD x 2.5ID - Center Tip Positive

Adaptors (mm):

5.5OD/2.5ID Male to 5.5OD/2.1ID Female - Center Tip Positive

3.5OD/1.35ID Male to 5.5OD/2.5ID Female - Center Tip Positive

5.5OD/2.1ID Male to 3.5OD/1.35ID Female - Center Tip Positive


Specifications
DC current rating : 2.5A
DC Current Surge Rating : 3.0A
DC Voltage : 12.2V
Length : 138.0mm
Width : 60.0mm
Height : 24.0mm
Weight : 260.0g
Battery Watt Hour Rating (Required for Lithium Batteries) : 29.6Wh
Dangerous Road Freight : false
Dangerous Air Freight : true
Recharging Voltage : 11.8V, 12.5V
Standard Recharge Current : 0.8A
Battery Chemical Composition : Lithium Ion
Type of battery : 18650

The Switch

  • 6-port Unmanaged 10 Gigabit Switch
  • 5 x 2.5 Gigabit Ethernet Ports
  • 1 x 10 Gbps SFP+ slot
  • 45 Gbps Switching capacity
  • Low power consumption of 4.8 watts
  • Small form factor – 114(W) x 90(D) x 25(H)mm

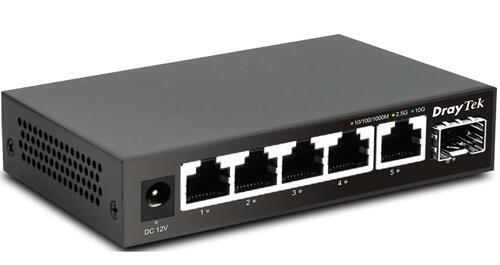

The VigorSwitch Q60x features 1 x 10GbE SFP+ slot and 5 x 2.5GbE ports, providing reliable and high-speed network connectivity. Designed for plug-and-play simplicity, it requires no configuration—just connect your devices to expand your network effortlessly and cost-effectively.

With an energy-efficient design, it consumes only 4.8 watts of power, while its durable metal casing enhances heat dissipation. Plus, its wall-mountable design offers flexible deployment options to suit various space settings.

Power Input AC 100-240V @ 0.3A
Max. Power Consumption 4.85 watts
Dimension (mm) 114(W) x 90(D) x 25(H)
Weight 250g
Operating Temperature 0 to 45°C
Storage Temperature -40 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 95% non-condensing
