  • 5GHz airMAX AC LiteBeam Gen2 Radio, 450Mbps, 23dBi Antenna

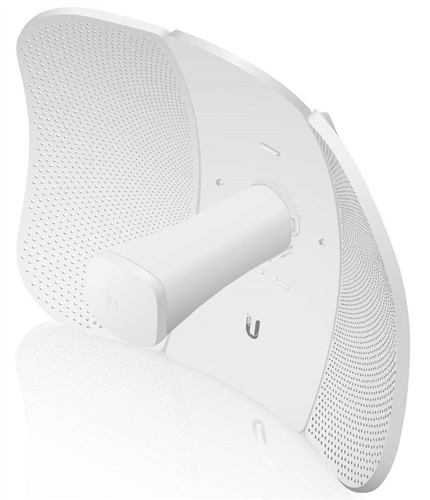

Ubiquiti LBE-5AC-GEN2 5GHz airMAX AC LiteBeam Gen2 Radio, 450Mbps, 23dBi Antenna

5GHz airMAX AC LiteBeam Gen2 Radio, 450Mbps, 23dBi Antenna

Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Antenna Gain : 23 dBi
  • Throughput : 450+ Mbps
  • 5 GHz Operating Frequency
  • Gigabit Ethernet Network Interface
  • MIPS 74Kc Processor
  • 64 MB DDR2 RAM
  • Power & Ethernet LEDs
  • Plastic Reflector Enclosure
  • 125 mph Wind Loading / Survivability
  • ± 24 kV ESD/EMP Protection
  • Includes Pole-Mounting Kit

The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

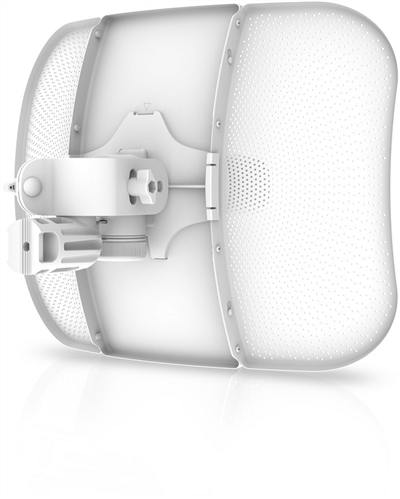

The LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment. Featuring enhanced protection against power surges, the LiteBeam 5AC Gen 2 offers a more robust mount with separate azimuth and elevation adjustments. The LiteBeam 5AC Gen 2 also integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

• Dimensions: 358 x 271.95 x 272.5mm
• Weight:
    Without Mount: 800g
    With Mount: 980g
• Power Supply: 24V, 0.3A Gigabit PoE Adapter (included)
• Max. Power Consumption: 7W
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 24V±10%
• Operating Frequency: 2412 - 2462MHz / 5150 - 5875MHz
• Gain: 23dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74Kc
• Memory: 64 MB DDR2
• LEDs: Power, Ethernet
• Channel Sizes:
    PtP Mode: 10/20/30/40/50/60/80MHz
    PtMP Mode: 10/20/30/40MHz
• Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
• Mounting: Pole-Mounting Kit (Included)
• Wind Loading: 275N @ 200km/h (61.8lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• ESD/EMP Protection: ±24kV Contact / Air
• Operating Temperature: -40 to 70°C
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

Product Includes:
• (1) Antenna Feed
• (1) Central Reflector Panel
• (2) Side Reflector Panels
• (1) Feed Receiver
• (1) Azimuth Mount
• (1) Elevation Mount
• (1) Metal Strap
• (1) Knob Kit
• (1) Gigabit PoE (24V, 0.3A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
