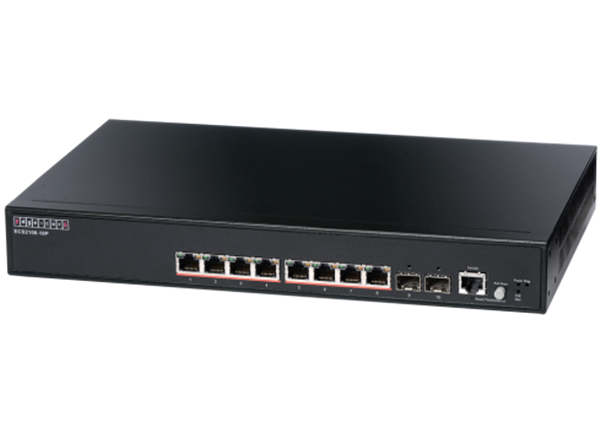

Edgecore ECS2100-10P 8-Port Gigabit Managed PoE Switch, 2 SFP, 802.3af / 802.3at PoE, 125W
8-Port 10/100/1000 Mbps (Gigabit) Managed PoE Switch with 2 Gigabit SFP slots, 802.3af and 802.3at PoE, Power budget 125W, Internal Power Supply.
10x Networking Ports in Total, 8x Gigabit RJ45 Ethernet, 2x SFP, Managed, Rackmount, Layer 2
The ECS2100 Series is a range of web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large.
ECS2100-10P is a full-PoE fanless design switch, it supports up to 8 ports at 15.4 W, or 4 ports at 30 W to meet the increasing power demands of users. The PoE Budget is max.125W.
· Performance and Scalability with 20Gbps switching capacity
· Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1Q VLAN-segmented and IEEE 802.3ad Link Aggregation Control Protocol (LACP)..
· Comprehensive QoS - Traffic is prioritized according to 802.1p or DSCP, giving optimal performance to real-time applications such as voice and video.
· Multi Management- supports CLI, Web, SNMP v1/v2c/v3, and Telnet management to provide multiple network management access.
· Enhanced Security with Port security limits for IEEE 802.1X port-based or MAC-based access including DHCP snooping, Access Control Lists (ACLs), Dynamic VLAN, IP Source Guard and Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) encrypt Telnet and web access to the switch.
· Smart Network Deployment - Automatic Voice VLAN for quick deployment of VoIP, and automatic Video VLAN to help deploy your IP-based surveilliance system.
· PoE Support - provide up to 30 Watts of power to attached devices, such as VoIP phones, wireless access points, and surveillance cameras, all over existing Ethernet cables.
Specifications:
· Ports: 8
· Switch Type: Fixed Port
· Routing/Switching: Layer 2
· Features: PoE, Fanless, IPv6 Management
· Predominant Port Type: Gigabit Copper, Gigabit Fiber
· Comes with rackmount kit
ECS2100 series management features
Switching
- Flow control
- Broadcast/ Multicast/ Unknown unicast control
- Auto MDI/MDIX
Spanning Tree Protocol
- IEEE 802.1D /.1w/.1s
- STP fast forwarding/Auto Edge
- BPDU Guard/BPDU filtering
- Root Guard
- BPDU transparent
- Loopback detection
VLAN
- 4K VLAN
- Port-based VLAN
- 802.1Q VLAN
- 802.1v Protocol based VLAN
- MAC-based VLAN
- Traffic Segmentation
- Voice VLAN
- Auto VLAN Assignment
Port Trunk
- Static trunk
- IEEE 802.3ad LACP
QoS
- 8 Hardware queues
- 802.1p CoS
- CoS based on IP precedence, DSCP, TCP/UDP Port, ACL
- WRR/Strict or Hybrid
- DiffServ
- Ingress traffic policing
- Marking/remarking
- Auto QoS profile assignment
- Rate limiting
Multicast control
- IGMP snooping v1/v2/v3
- IGMP Querier
- IGMP snooping filtering/throttling
- IGMP snooping proxy
- Immediate leave
- MLD snooping v1/v2
Security
- MAC filtering
- Port security (dynamic & static)
- Port security intrusion action
- 802.1x Port-based authentication
- 802.1x MAC-based authentication
- Guest VLAN
- MAC filtering
- MAC authentication
- DHCP snooping/snooping 82
- IP Source Guard
- Dynamic ARP Inspection
- Access Control List
- Denial of Service Protection
- AAA (Authentication, Authorization, Accounting)
- SSH v1/v2
- SSL/HTTPS
- Management access filter (WEB/SNMP/Telnet)
- Static Routing *
- mDNS *
- QinQ *
- G.8032 *
- IP Clustering *
* (v1.2.2.0 + support )
Management
- Cisco like CLI
- Telnet/WEB/SNMP v1/v2/v3
- RMON(1,2,3,9)
- FTP/TFTP/HTTP download
- DHCP dynamic provision (option 66&67)
- DHCP client/option 82 relay
- Time zone for SNTP
- DNS client/proxy
- Delay reload
- Event/error log, system log
- Auto upgrade
- Port monitor
- LLDP (802.1ab)
- Cable diagnostic
IPv6
- IPv4/IPv6 Dual Protocol Stack
- IPv6 Address types: Unicast
- IPv6 Neighbor Discovery
- SNMP over IPv6
- HTTP over IPv6
- Remote IPv6 ping
- IPv6 Management
- IPv6 ACL
- IPv6 QoS
