ETU-LINK EM-1100-SSXX Gigabit 10/100/1000BASE-T to SFP Converter

Gigabit 10/100/1000BASE-T to SFP Converter

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

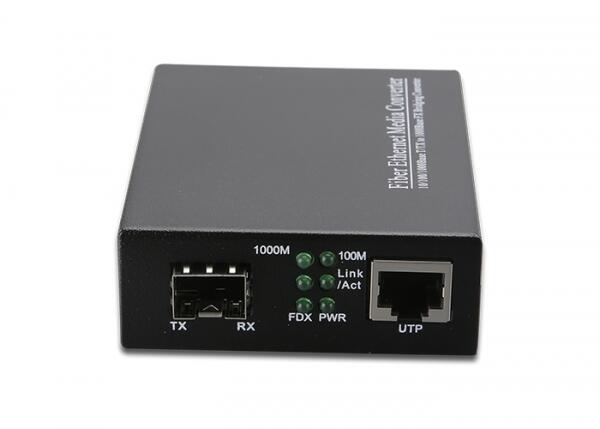

This ETU-Link Gigabit Ethernet SFP fiber media converter bridges the gap between copper and fiber infrastructures.

  • High flexibility with hot plug-and-play SFP
  • 1600byte super data packet transmission
  • Full duplex-flow control, Half duplex-back pressure
  • Link fault pass through (LFPT)
  • Full- positioned LEDs to indicate power and network status

SFP fiber media converters are designed for maximum convenience for fiber to copper Ethernet conversion applications which require flexibility in transmission rates, working distances, and fiber network types which can be realized by simply changing the hot-plug-and-play SFP.

  • Standards : IEE802.3z 1000BASE- -SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
  • 10/100/1000BASE-T : STP or UTP Category 5/5e/6 cable (Max. 100m)
  • SFP : SX, LX, EX, ZX, EZX, and Bi-Di optical transceivers are available
  • Conversion Mode / Delay : Time Store-and-Forward < 10us, straight-through<0.9us
  • Flow control : Full duplex-flow control, Half duplex-back pressure
  • RJ-45 Port : Auto-MDI/MDIX
  • Dimensions : 70mm(W) x 93mm(D) x 25mm(H)
  • Weight : Net weight : 0.16kg; Gross weight : 0.42kg
  • Input Voltage : DC 5V, 1A with External power adapter
  • Power Consumption : <2.5W
  • MTBF : 50,000 hours BER <1/1000000000
  • MAC Address Table : 1K
  • Buffer Size : 1M
  • Operating Temperature : 0?~50?
  • Storage Temperature : -40?~70?
  • Storage Humidity : 5%~90% non-condescending
